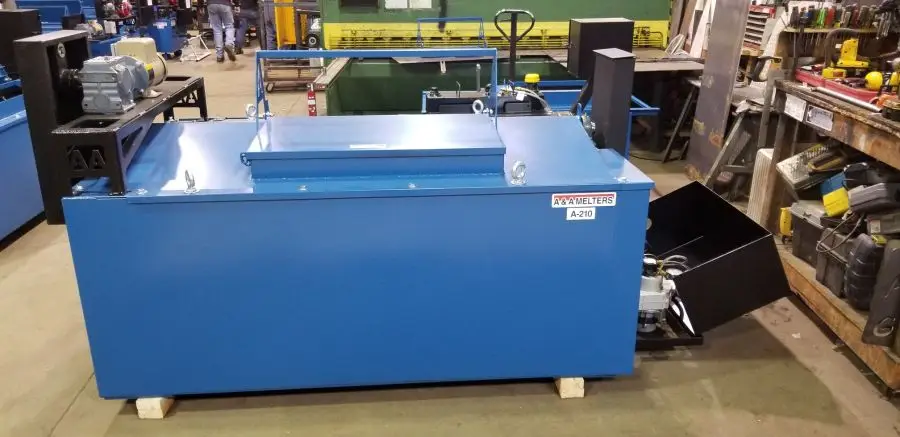

The A-210 lives up to its’ “High Performance” name tag. Stainless steel fire tubes come standard. Unique air-jacketed construction ensure no product charring.

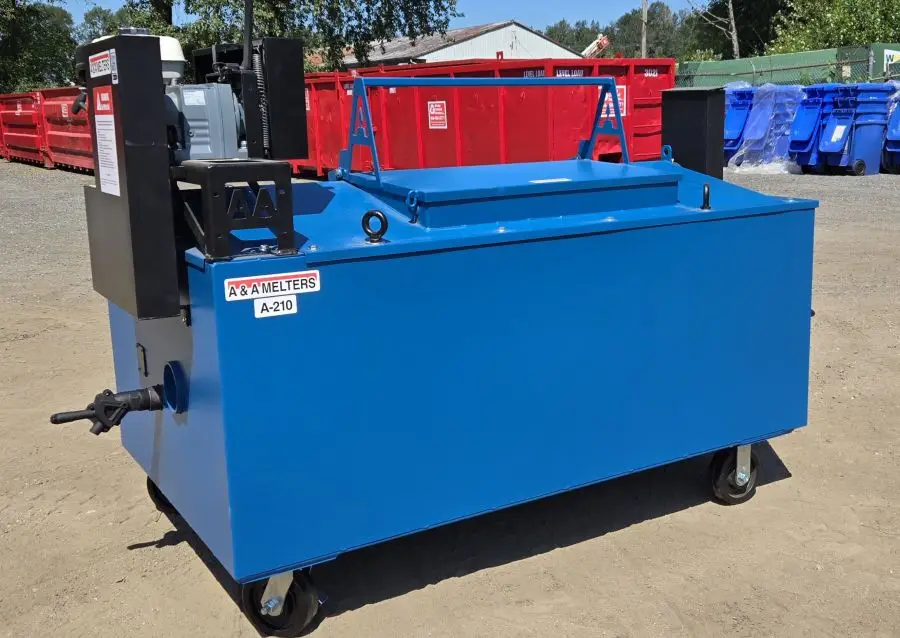

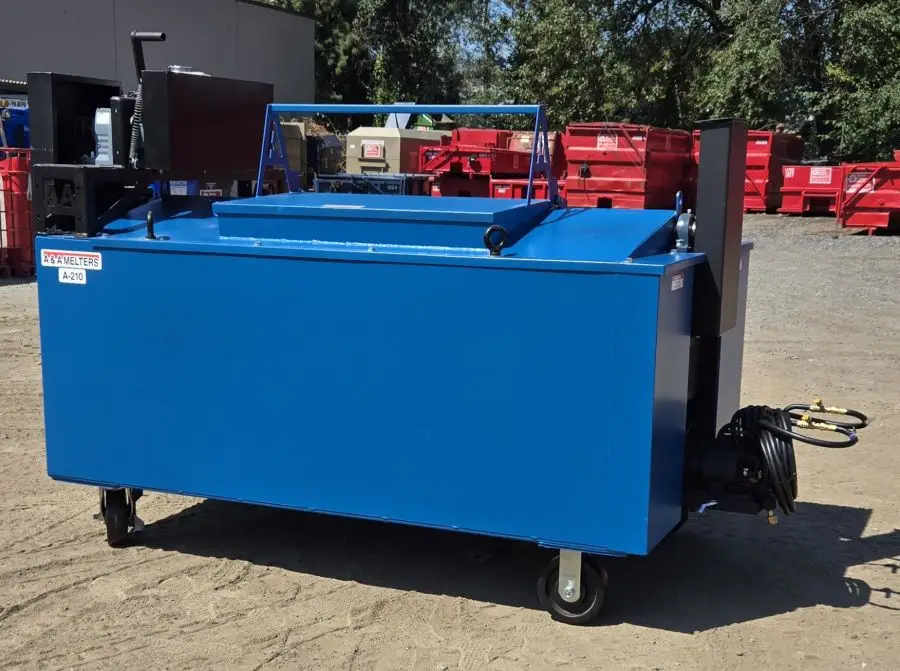

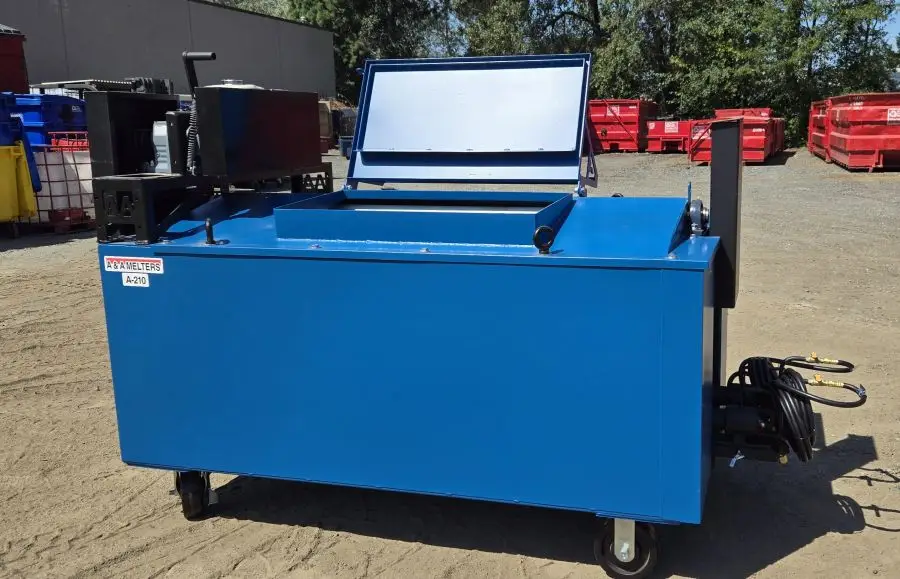

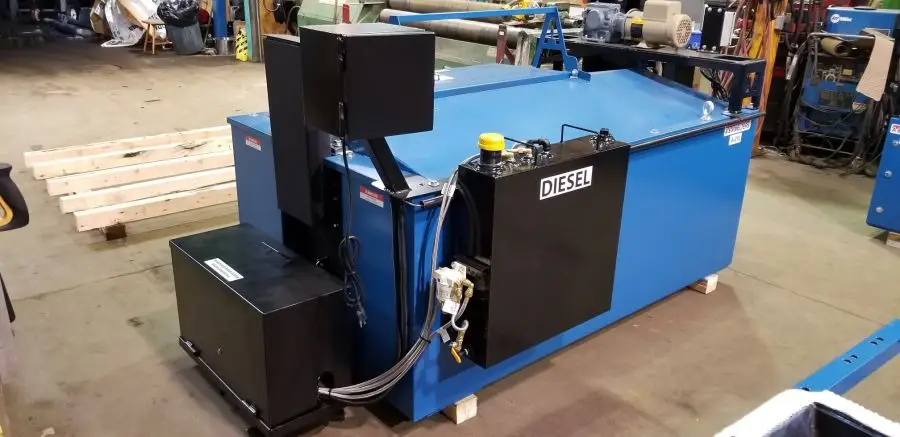

This U.S. 200 gallon model has a large material handling capacity combined with a fast heat-up time. Your choice of gas, electric or optional Diesel drive agitator. Optional trailer, pump and Auto Temperature controls.Material ready in 55 minutes.

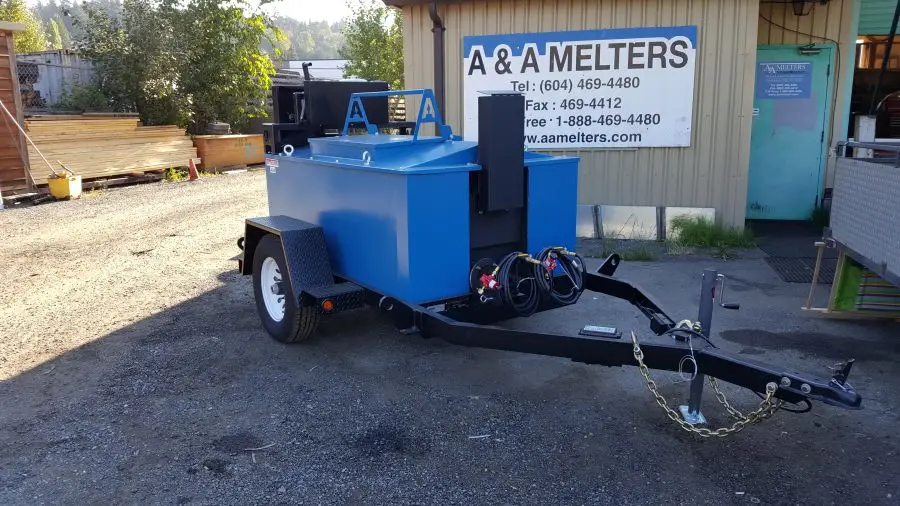

*Shown with optional trailer.
| Specification | Detail |
|---|---|
| Heat Transfer Oil | None Required |
| Fire Tubes | 5″ sch 80 Stainless Steel Pipe |
| Capacity | 200 US Gallons |

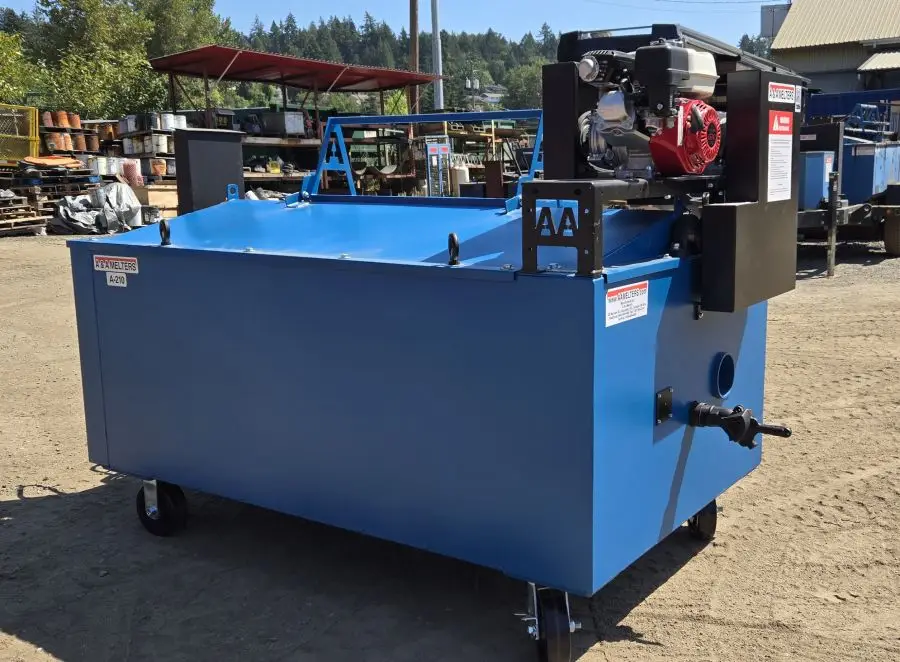

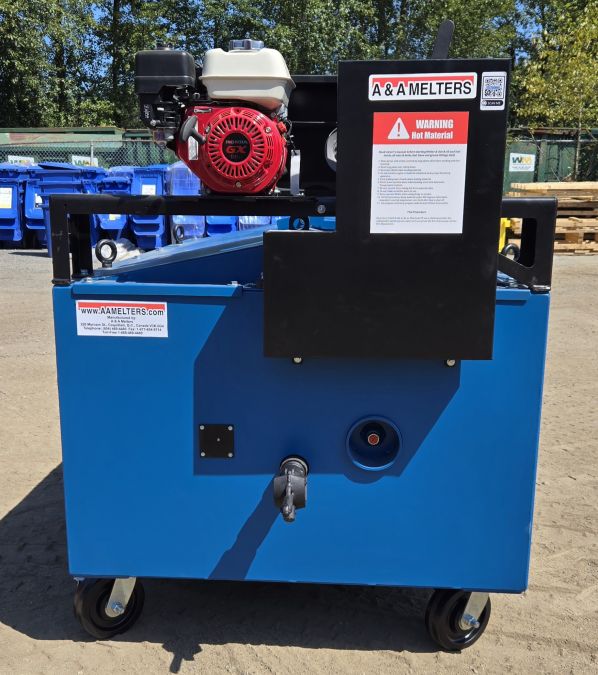

| Agitator | Honda 5.5 H.P. Air-Cooled Engine, 110 Volt Electric or Optional Diesel Engine |
| Overall Dimensions (Melter Only) | L-88″ W-48″ H-54″ 2,100 lbs |

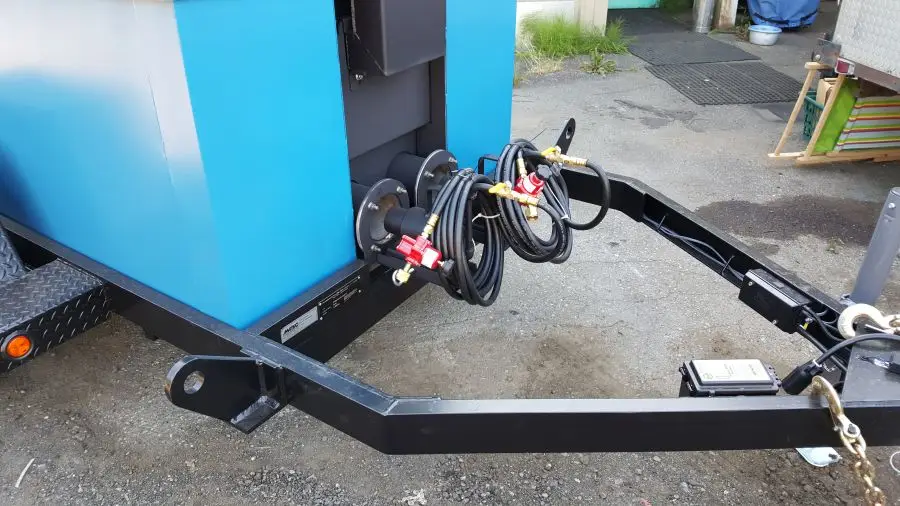

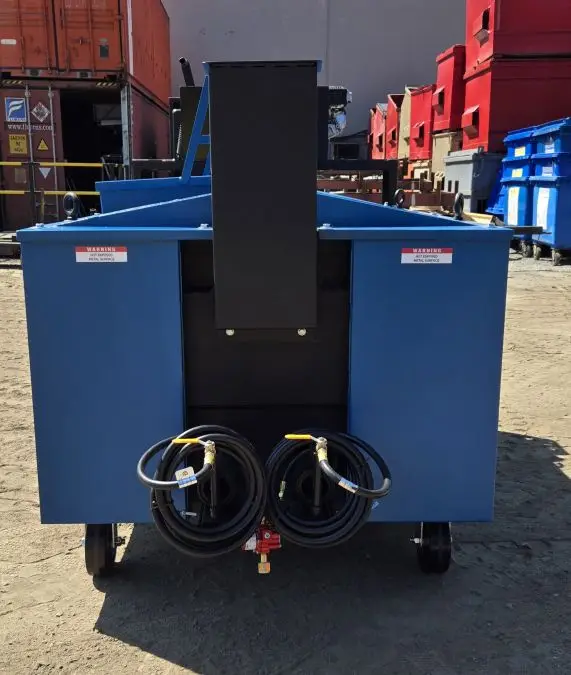

| Burner | Adjustable Liquid Propane 2 × 360,000 BTU, Optional Beckett Diesel Burners |
| Temperature Controls | Optional Optional |
| Inner Shell | 1/4″ Rolled Steel |
| Outer Shell | 1/8″ Rolled Steel |
| Insulated Jacket | 1/2″ Super High Temp. Plus 2″ High Temp. Fiberglass |
| Suspension 4″ Drop Axle | 6000 lb. Axle |
| Optional Trailer (w/ Melter mounted) | L-162″ W-79″ H-67″ 2,650 lbs Optional |
| Brakes | Electric Standard |
| Tow Hitch | As ordered c/w safety chain |
| Shipping Weight (Melter only) | 2,100 lbs |
| Shipping Weight (Trailer only) | 550 lbs |
| Pump | 1 1/2″ Viking Optional |
| Horizontal Wand Pumping System | Optional |
| Tires | 2 × 6.00 × 14″ |
| Trailer Chassis | 4″ Steel Channel |
| Heated Material Output | |
| Efficiency | 78.9% |
| Material Capacity | 200 US Gallons — Output approx. 180 gal/hr |
| Heat Up Time | 55 mins |
