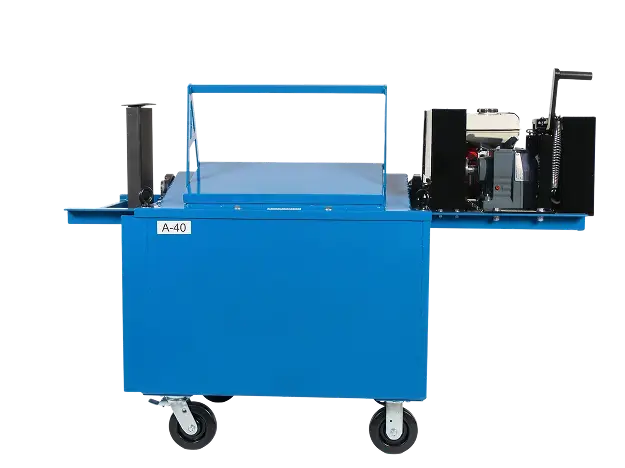

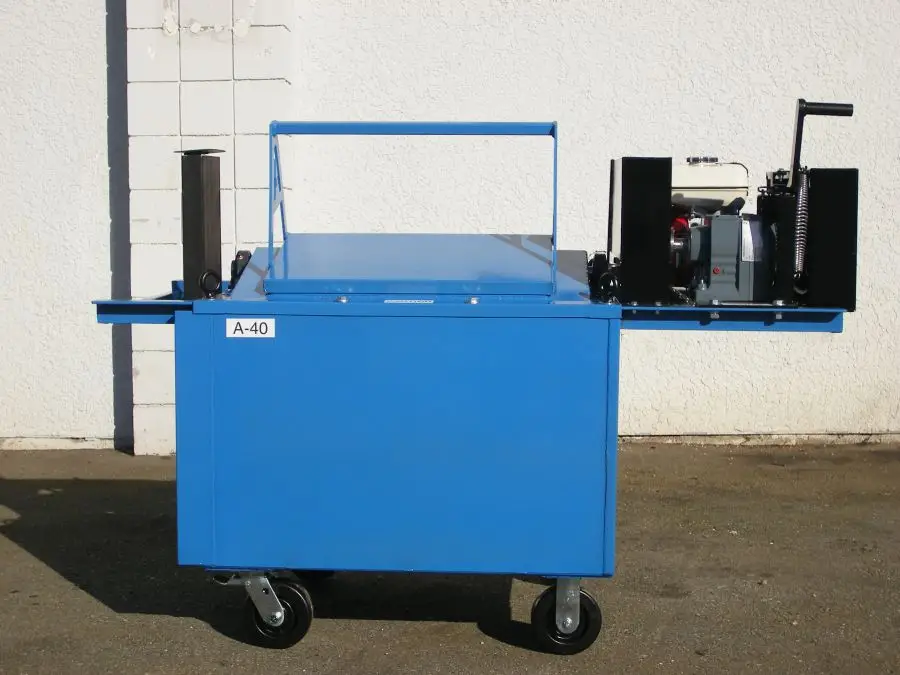

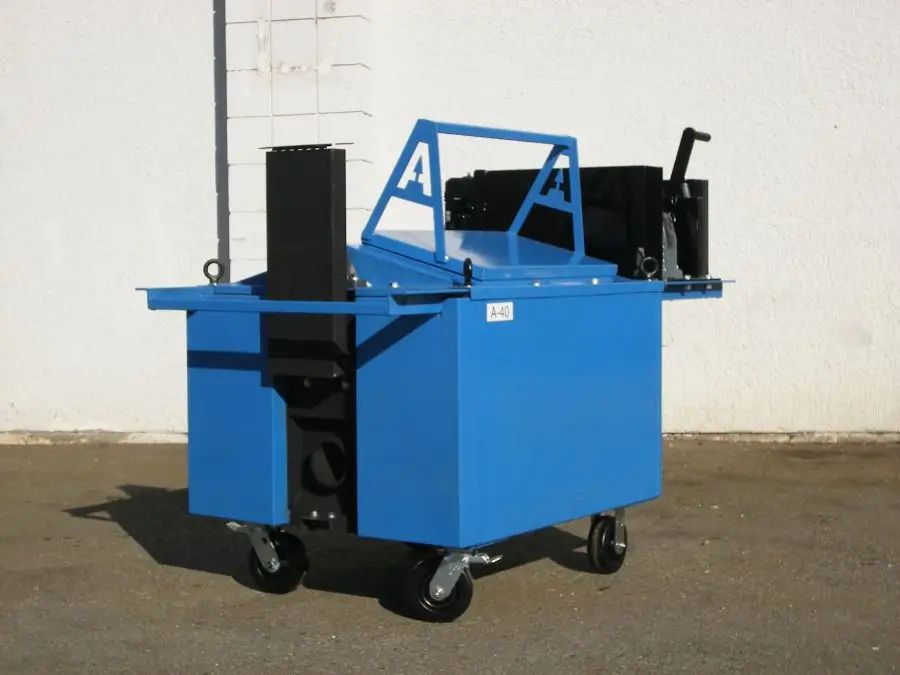

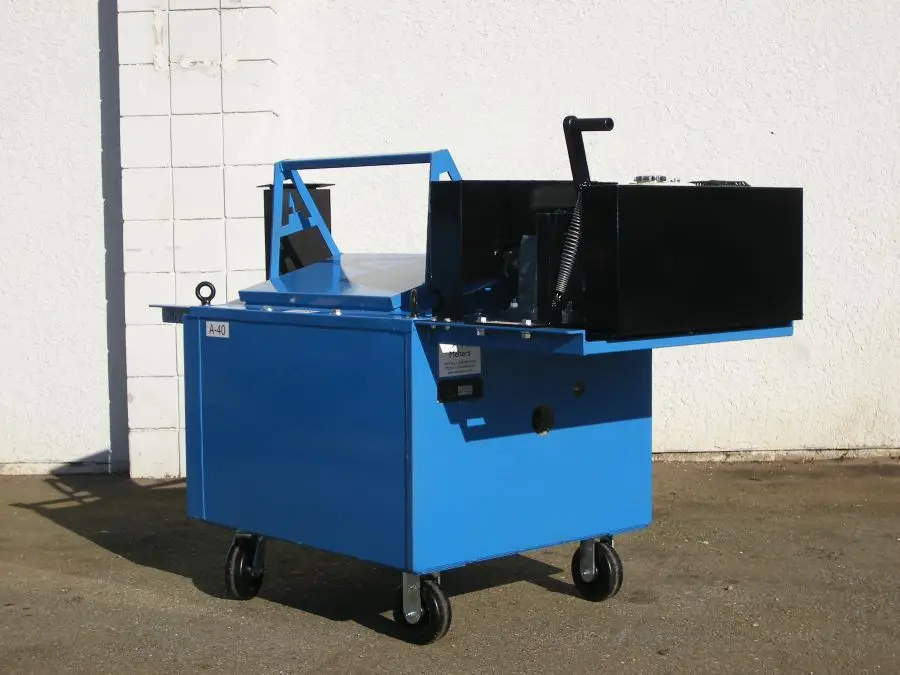

The A-40 is a very compact under-fired melter and has the same oil-less design as its larger brothers which reduces warm-up time to approximately 20 minutes. Extra high temperature insulation permits movement from one roof deck to another without burning the operator. Stainless steel fire tube comes standard
The A-40 is a very compact under-fired melter and has the same oil-less design as its larger brothers which reduces warm-up time to approximately 20 minutes. Extra high temperature insulation permits movement from one roof deck to another without burning the operator. Stainless steel fire tube comes standard
The A-40’s small dimensions allow it to fit into any elevator or through a standard doorway and the interchangeable power pack allows the contractor to purchase the super-quiet electric unit which is suited to a specific job where noise restrictions may be of concern.
| Specification | Detail |
|---|---|
| Heat Transfer Oil | None Required |
| Fire Tube | 4″ sch 80 Stainless Steel Pipe |
| Capacity | 35 US Gallons |
| Agitator | Honda 4 H.P. Air-Cooled Engine, 110V Electric or Optional Diesel Engine |
| Overall Dimensions | L-62″ W-31 3/4″ H-47″ 850 lbs |
| Burner | Adjustable Liquid Propane 1 × 300,000 BTU or Optional Beckett Diesel Burner |
| Temperature Controls | Optional Optional |
| Inner Shell | 3/16″ Rolled Steel |
| Outer Shell | 3/16″ Plate |
| Insulated Jacket | 1/2″ Super High Temp. plus 2″ High Temp. Fiberglass |
| Shipping Weight | 850 lbs |
| Heated Material Output | |
| Efficiency | 78.9% |
| Material Capacity | 35 US Gallons — Output approx. 30 gal/hr |
| Heat Up Time | 30 mins |
