Mastic Melters
Introducing our newly designed Air-Jacket Mastic Melter, designed for melting repair mastics & aggregate filled patching products used for repairing Concrete & Asphalt. Implementing the same high standard of quality and durability that has been used in producing our line of Hot Rubber Melter for the past 25 years. These units feature a full sweep agitator and Automatic temperature controls ensure material is kept within a specific temperature. Our unique Air-jacketed design allows for exceptionally quick heating of material without some of the problems often associated with typical Oil Jacketed units.
*Download Spec Sheet here – A-240 Mastic Melter

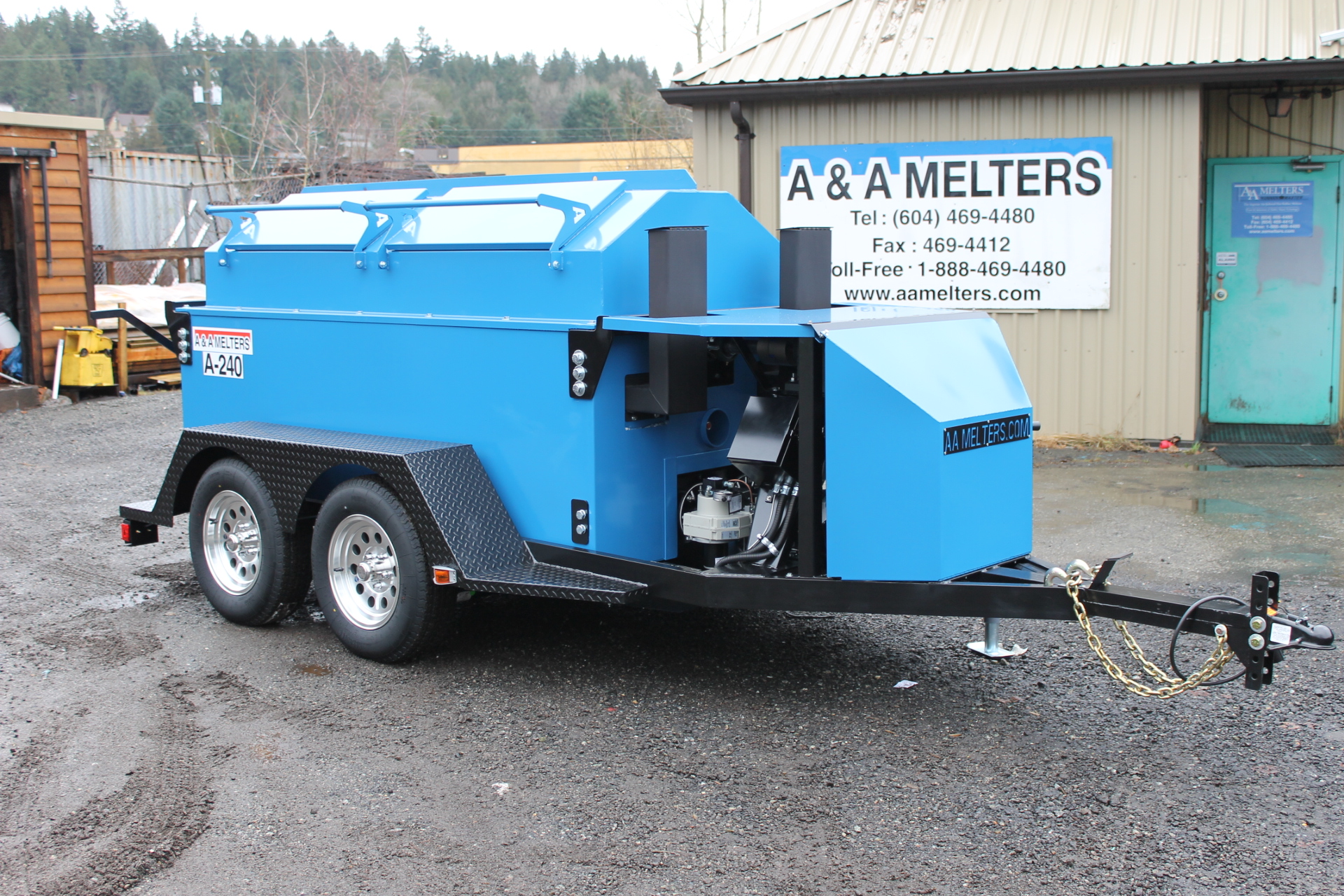

Click Image to Enlarge
SPECIFICATIONS: A-240 Mastic Melter |
|
|---|---|
| Heat Transfer Oil | None Required |
| Fire Tubes | 5″ Sch 80 Stainless Steel Pipe |
| Capacity (Custom Sizes Available) | 240 US Gallons |
| Hydraulic Agitator w/ Auto Shut off | Honda 9.0 H.P. Gas or Optional Kubota 9.0 HP Diesel |
| Overall Dimensions | L-198″ W-74″ H-70″ |
| Burners | Adjustable Liquid Propane or Optional Beckett Diesel Burners |
| Temperature Controls | Standard |
| Inner Shell | 1/4″ Rolled Steel |
| Outer Shell | 3/16″ Rolled Steel |
| Insulated Jacket | 1″ Super High Temp. plus 2″ High Temp |
| Suspension 4″ Drop Axle | Tandem Axle – 2 x 3500 lb. Axles |
| Tires | 4 X 8.00 X 15″ |
| Tandem Axle | Standard |
| Chassis | 4″ Steel Channel |
| Brakes | Electric Standard |
| Tow Hitch | As ordered c/w Safety Chains (2) |
| Shipping Weight | 3,500 lbs. |
- Hassle free 6 Inch material drain
- Stainless steel fire tubes
- Dual loading doors
- Air-jacketed design
- No more messy heat transfer oils
- Electric brakes come standard
- Automatic temperature controls
- Full Sweep Hydraulic Agitator
- Heavy Duty Design
