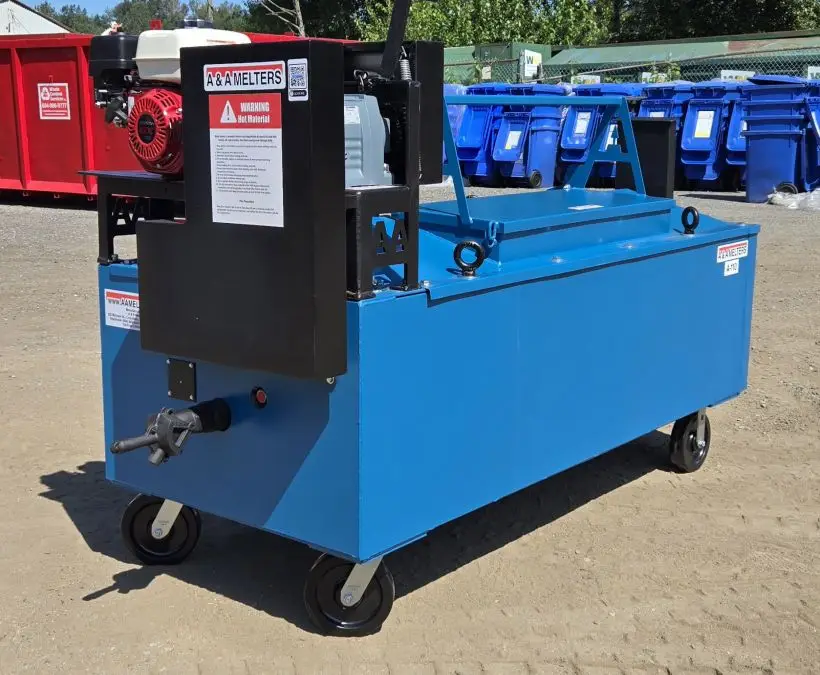

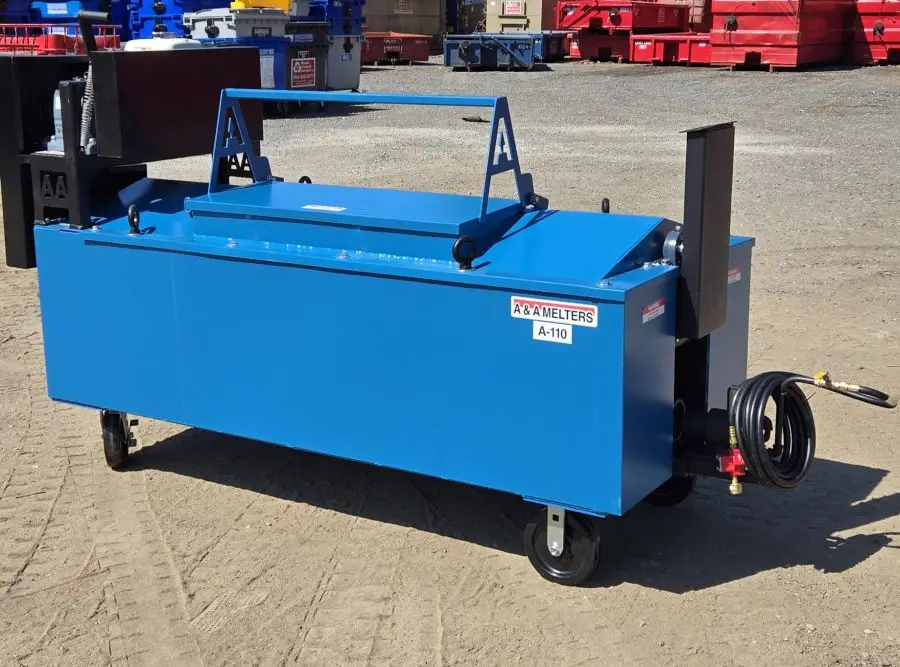

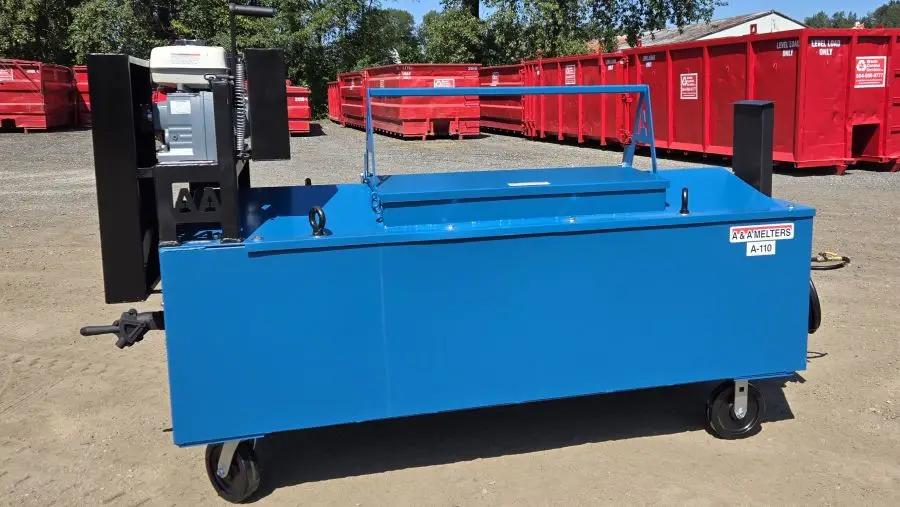

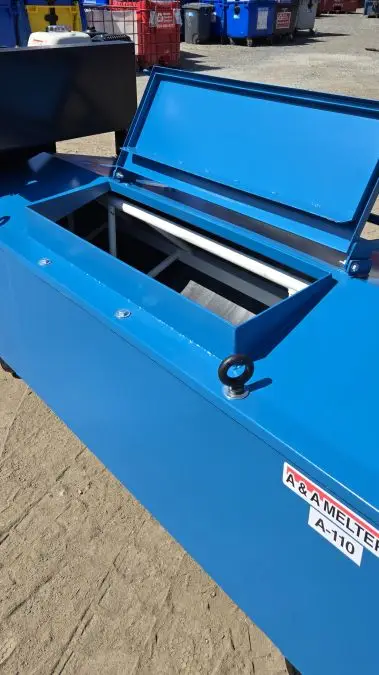

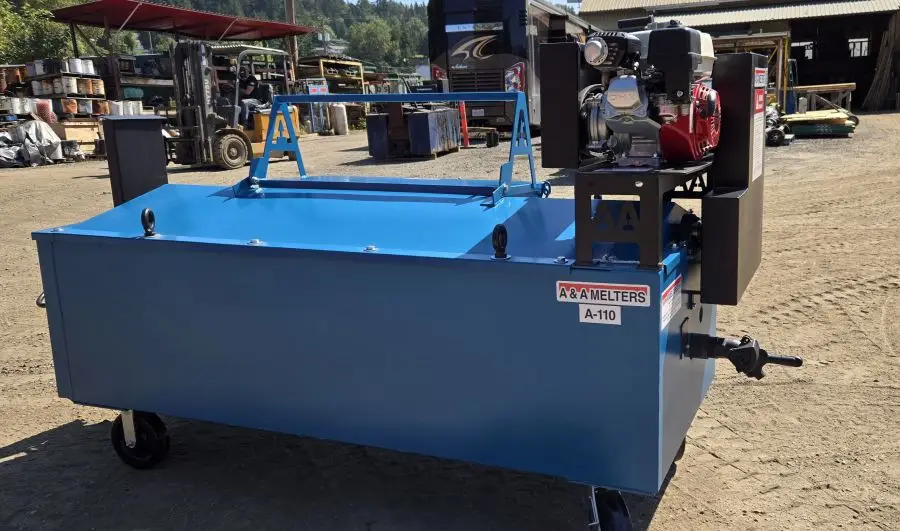

The A-110 is very versatile and can be transported easily in the back of a pick-up; can be hoisted directly to the roof. Easily accommodated in commercial elevators, the A-110 fits through standard 34″ doorways and can be equipped with optional casters for easy movement. Stainless steel fire tube comes standard.
The A-110 is very versatile and can be transported easily in the back of a pick-up; can be hoisted directly to the roof. Easily accommodated in commercial elevators, the A-110 fits through standard 34″ doorways and can be equipped with optional casters for easy movement. Stainless steel fire tube comes standard.

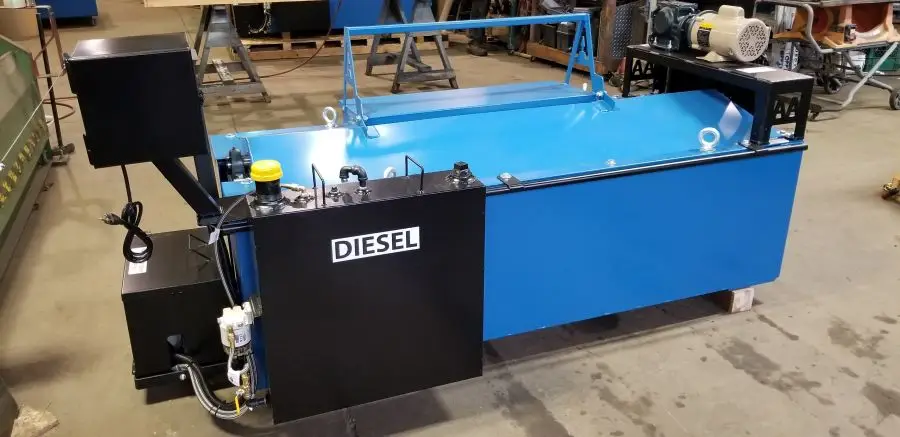

Also optional: Quick mount/dismount trailer. Available with gas, electric or optional Diesel drive. Material ready in 40 minutes.
| Specification | Detail |
|---|---|
| Heat Transfer Oil | None Required |
| Fire Tube | 4″ sch 80 Stainless Steel Pipe |
| Capacity | 100 US Gallons |

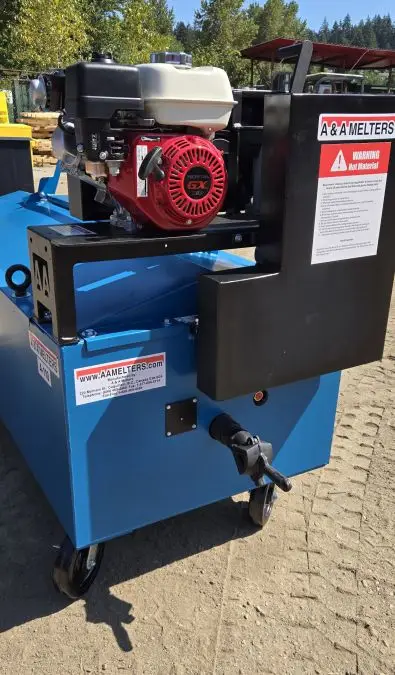

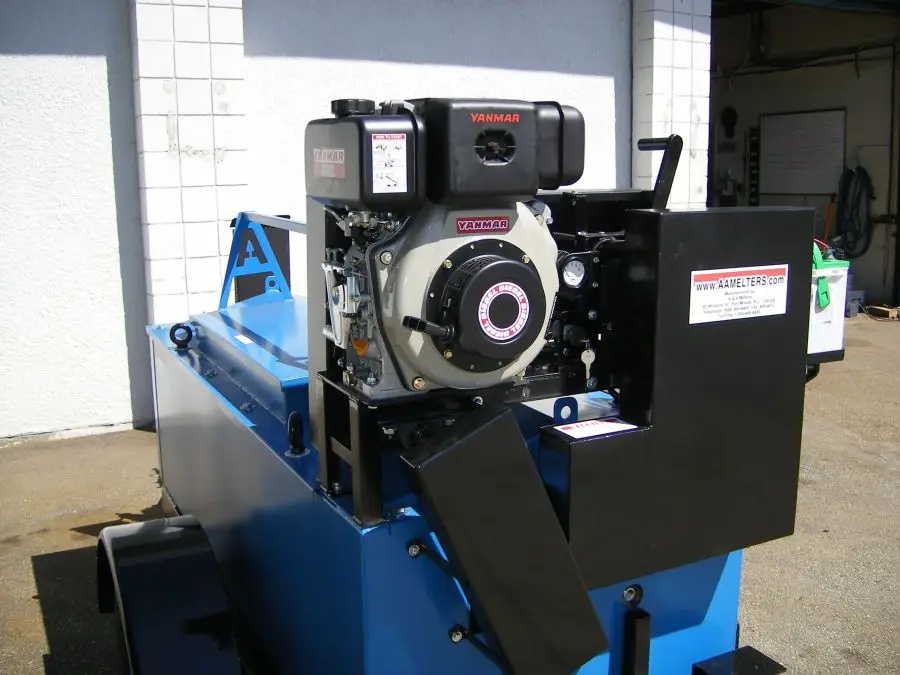

| Agitator | Honda 5.5 H.P. Air-Cooled Engine, 110 V Electric or Optional Diesel Engine |
| Overall Dimensions (Melter Only) | L-88″ W-33 5/8″ H-45″ 1,500 lbs |
| Burner | Adjustable Liquid Propane 1 × 500,000 BTU or Optional Beckett Diesel Burners |
| Temperature Controls | Optional Optional |
| Inner Shell | 3/16″ Rolled Steel |
| Outer Shell | 1/8″ Rolled Steel |
| Insulated Jacket | 1/2″ Super High Temp. + 2″ High Temp. Fiberglass |
| Suspension 4″ Drop Axle | 3500 lb. Axle and Springs |

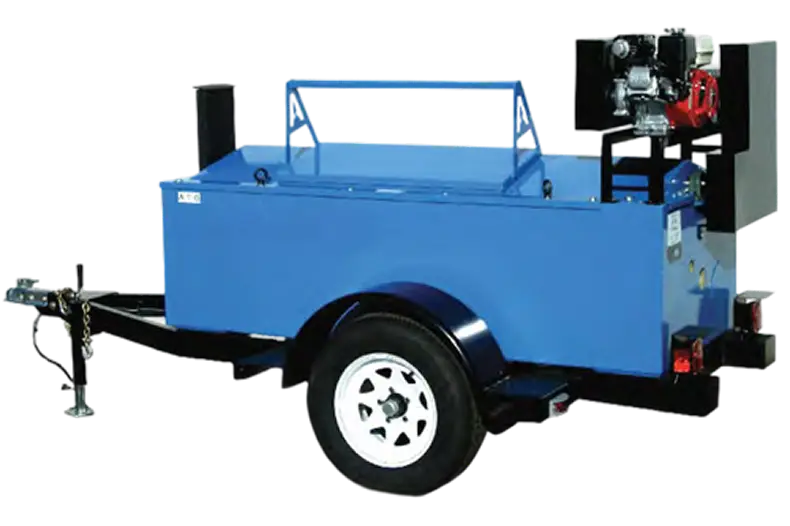

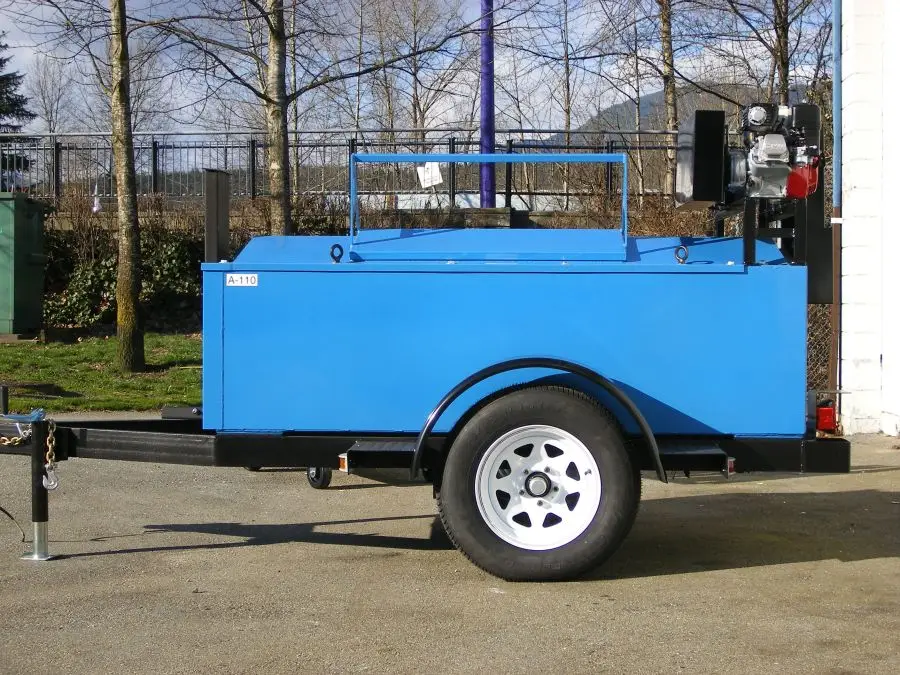

| Optional Trailer (w/ Melter mounted) | L-146″ × W-58″ × H-66″ 1,775 lbs Optional |
| Brakes | Optional Optional |
| Tow Hitch | As ordered c/w safety chain |
| Shipping Weight (Melter only) | 1,500 lbs |
| Shipping Weight (Trailer only) | 275 lbs |
| Pump | 1 1/2″ Viking Optional |
| Horizontal Wand Pumping System | Optional |
| Tires | 2 × 6.00 × 14″ |
| Trailer Chassis | 4″ Steel Channel |
| Heated Material Output | |
| Efficiency | 78.9% |
| Material Capacity | 100 US Gallons — Output approx. 80 gal/hr |
| Heat Up Time | 40 mins |
