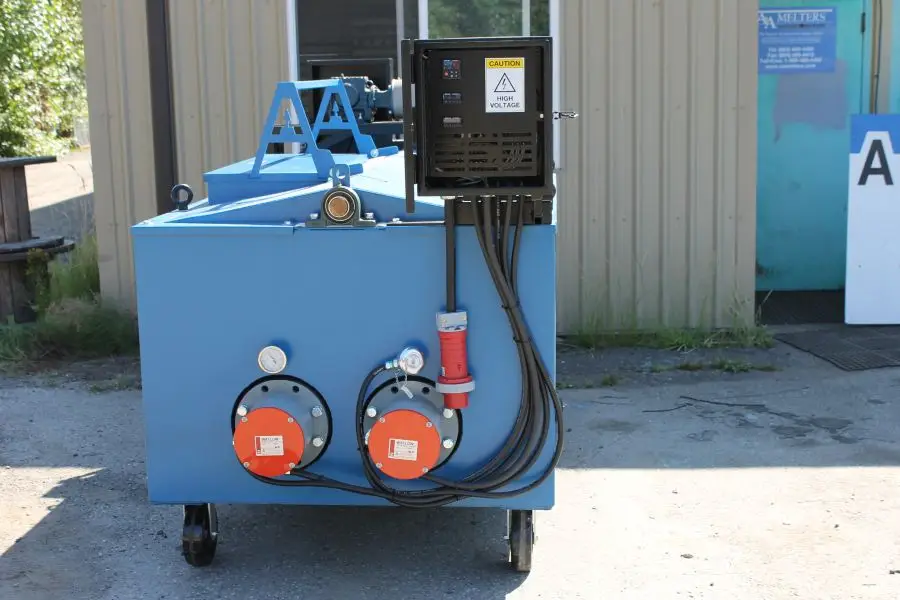

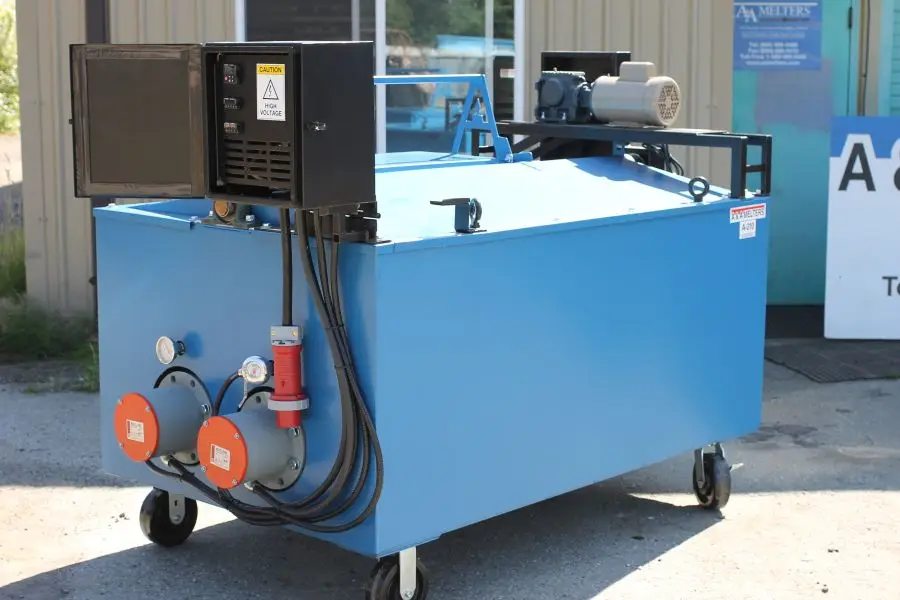

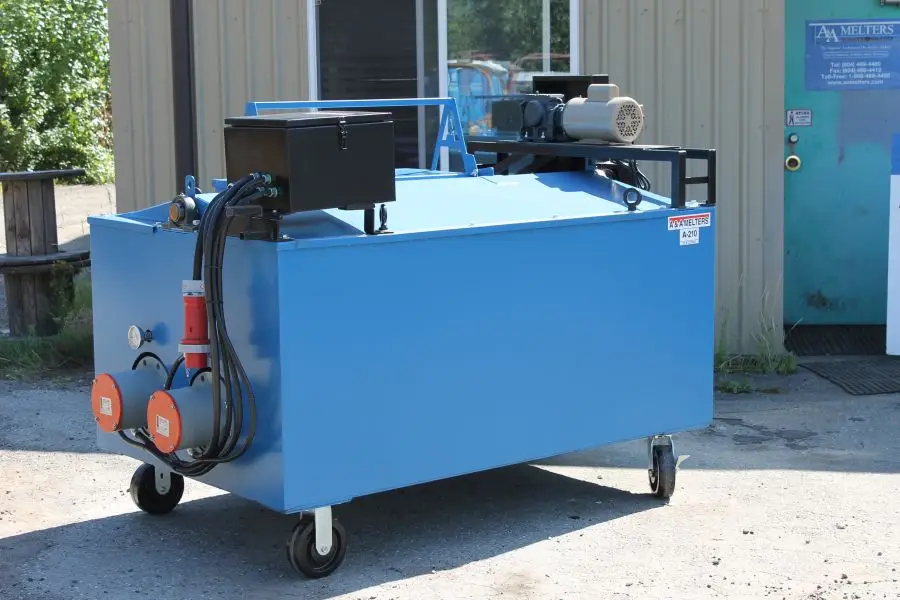

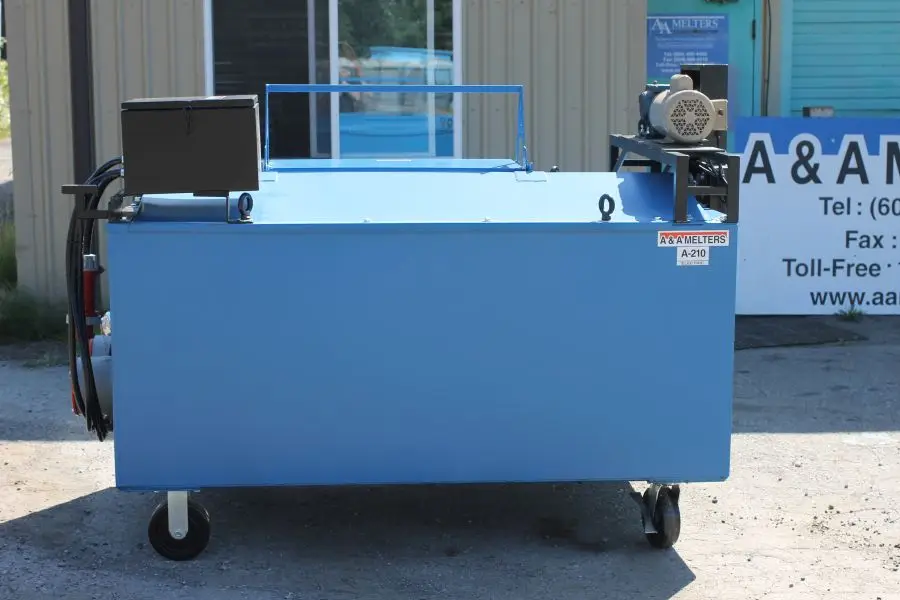

100% Electric Rubberized Asphalt Melters
Available in 60, 100 & 200 Gallon Models
Our 100% Electric melters come equipped with electric heater elements, electric drive system for the agitator and a factory programmed, easy to use temperature regulator and safety system .
Our electric melters run on 480 Volt 3 phase power, which can be made available via an existing on site hook up or through the rental or a portable/towable generator set. Contact us for details concerning power usage and rental options in your area.





| Specification | Detail |
|---|---|
| Capacity | 200 US Gallons |
| Agitator | 110 V Electric |
| Overall Dimensions (Melter Only) | L-94″ W-48″ H-63″ 2,100 lbs |

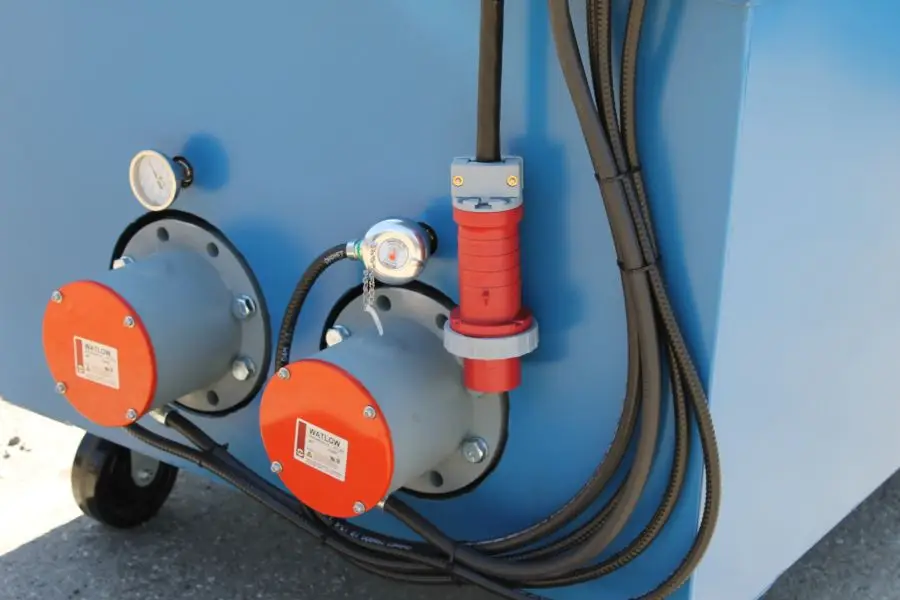

| Burner | 480V — 3PH 60 Amp Total (2 × 30 Amp 6″ 21 KWH Flanged Electric Elements) |
| Temperature Controls | Comes standard with all safety options installed Standard |
| Inner Shell | 1/4″ Rolled Steel |
| Outer Shell | 1/8″ Rolled Steel |
| Insulated Jacket | 1/2″ High Temp. Fiberglass plus 2″ High Temp. Fiberglass |
| Pump | 1 1/2″ Electric Viking Pump Optional |
| Optional Trailer (w/ Melter mounted) | L-162″ W-79″ H-67″ 2,675 lbs Optional |
| Brakes | Electric Standard |
| Tow Hitch | As ordered c/w safety chain |
| Shipping Weight (Melter only) | 2,125 lbs |
| Shipping Weight (Trailer only) | 550 lbs |
| Horizontal Wand Pumping System | Optional |
