A&A Melters

A-25

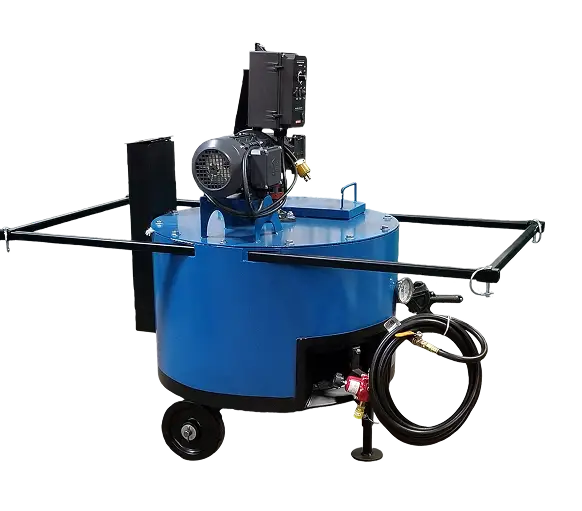

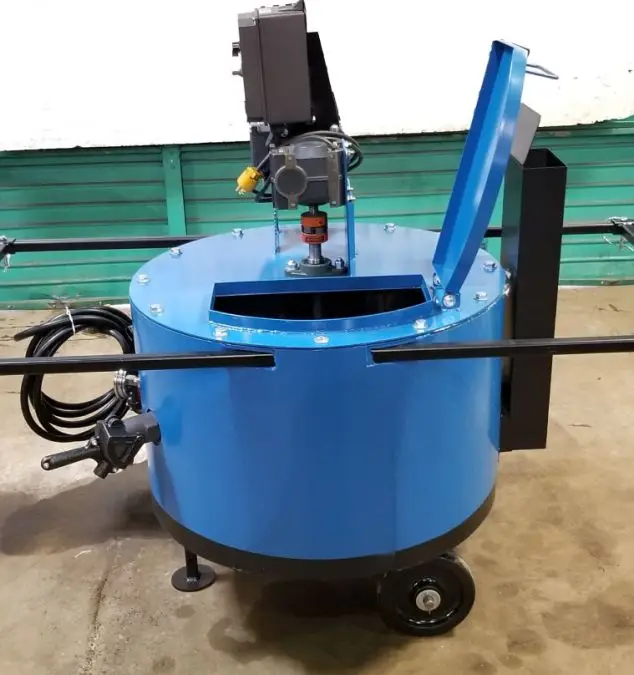

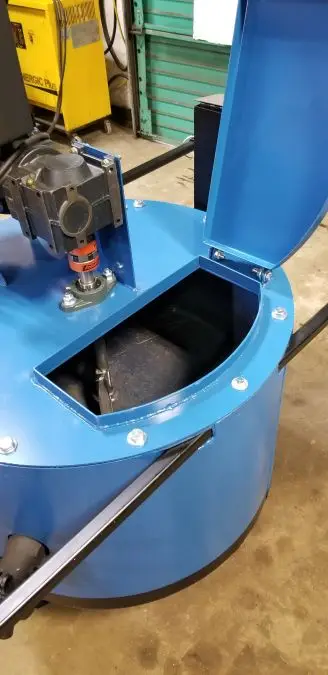

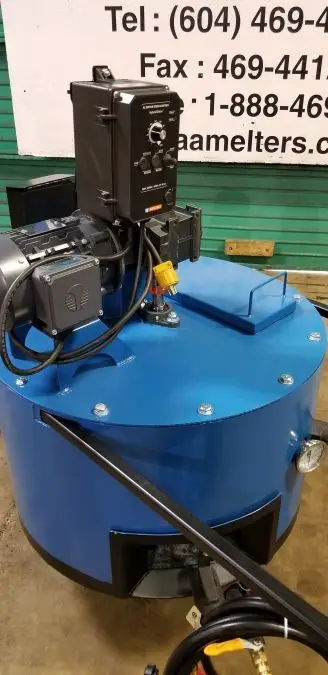

Our newest addition, the 25 Gallon Melter
Compact & lightweight design includes:

A&A MELTERS

A-25

Our newest addition, the 25 Gallon Melter
Compact & lightweight design includes:

  • Casters
  • Vapour propane burner
  • Material Drain Valve
  • Temperature Gauge
  • Handles for easy maneuverability
  • Patented “air-jacketed design”
    This Air-Jacketed unit has the same oil-less design as our larger units which reduces warm-up time. Extra high temperature insulation permits movement from one roof deck to another without burning the operator.  The A-25’s small dimensions allow it to fit into any elevator or through a standard doorway and comes with a super-quiet electric agitator which ensures thorough mixing of Material.

A&A MELTERS

Specification

Specification Detail
Heat Transfer Oil None Required
Capacity Custom Sizes Avail 25 US Gallons
Agitator 110 Volt Electric
Overall Dimensions (Melter Only) L-60″   W-30″   H-52″
Burner Adjustable Vapour Propane
Inner Shell 3/16″ Rolled Steel
Outer Shell 1/8″ Rolled Steel
Insulated Jacket 1/2″ Super High Temp. plus 2″ High Temp. Fiberglass
Shipping Weight 375 lbs
Heated Material Output
Material Capacity 25 US Gallons
Heat Up Time 30 mins (0.50 hr)
