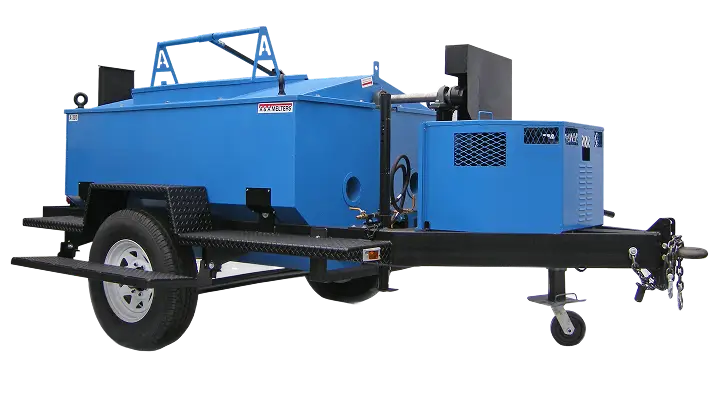

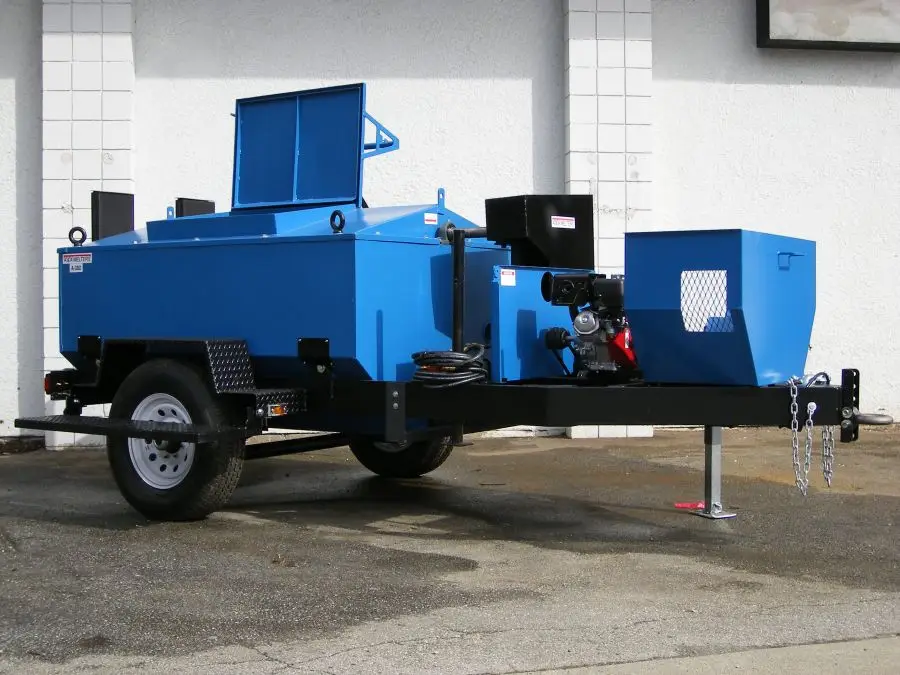

A-380
The A-380 features a new design based on customer demand which promotes a safer and more efficient work environment.
- Hassle free material spout area at the rear.
- Front mounted burners.
- Stainless steel fire tubes.
- Redesigned for ease of operation.
- Patented “air-jacketed design”
- No more messy heat transfer oils.
- Heats material in as little as 75 minutes.
- Electric brakes come standard.
- NEW-Heavy Duty trailer mounted lifting lugs Standard
*Download Spec Sheet here – A&A Melter A-380
*Download Operating Manual here – A-380 Manual
*CLICK IMAGE TO ENLARGE
SPECIFICATIONS: A-380 |
|
|---|---|
| Heat Transfer Oil | None Required |
| Fire Tubes | 5″ sch 80 Stainless Steel Pipe |
| Capacity | 360 US Gallons |

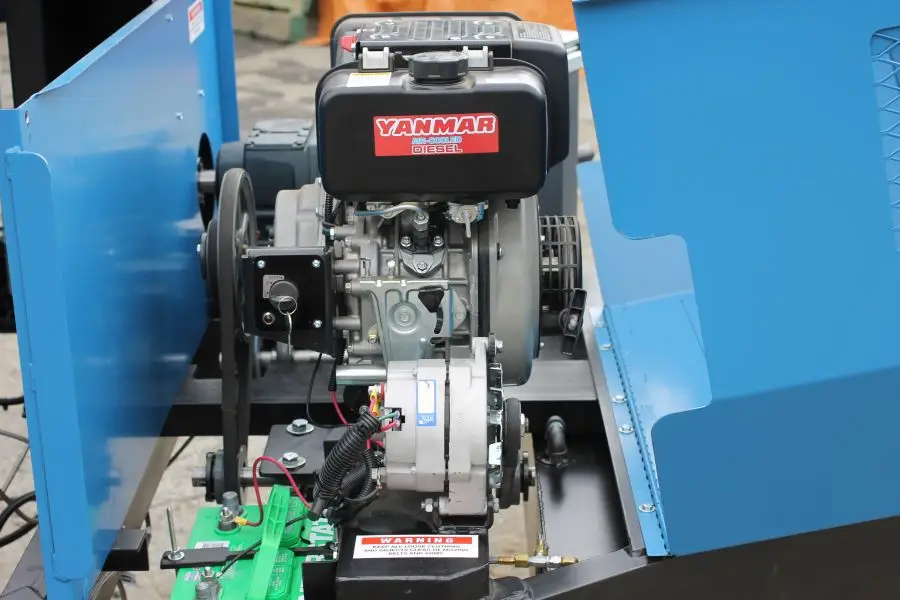

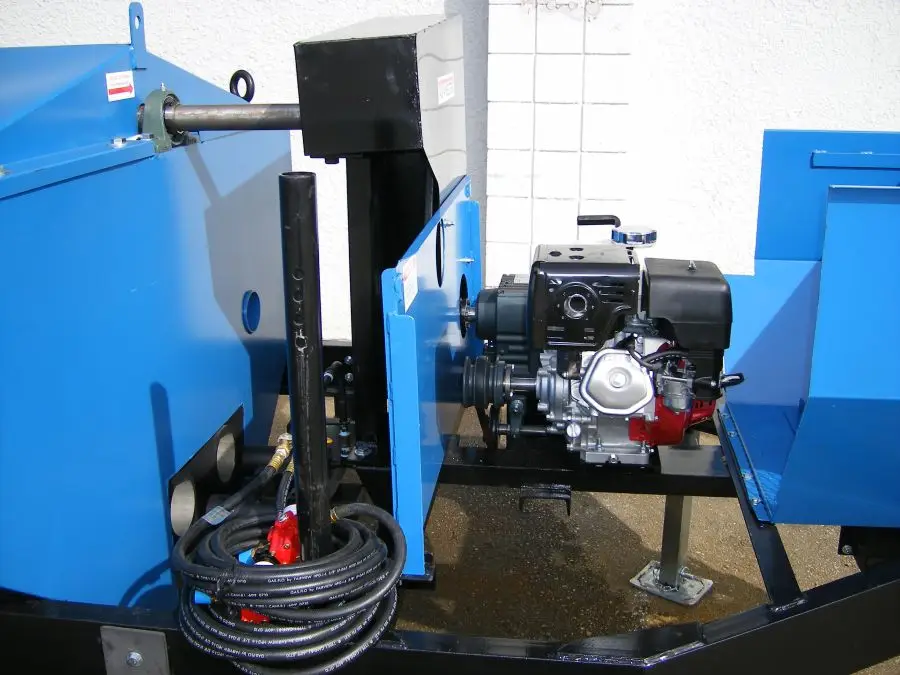

| Agitator | Honda 9.0 H.P. Air-Cooled Engine, 110 Volt Electric or Optional Diesel Engine |
| Overall Dimensions | L-172″ W-80″ H-70″ 3,600 lbs. |

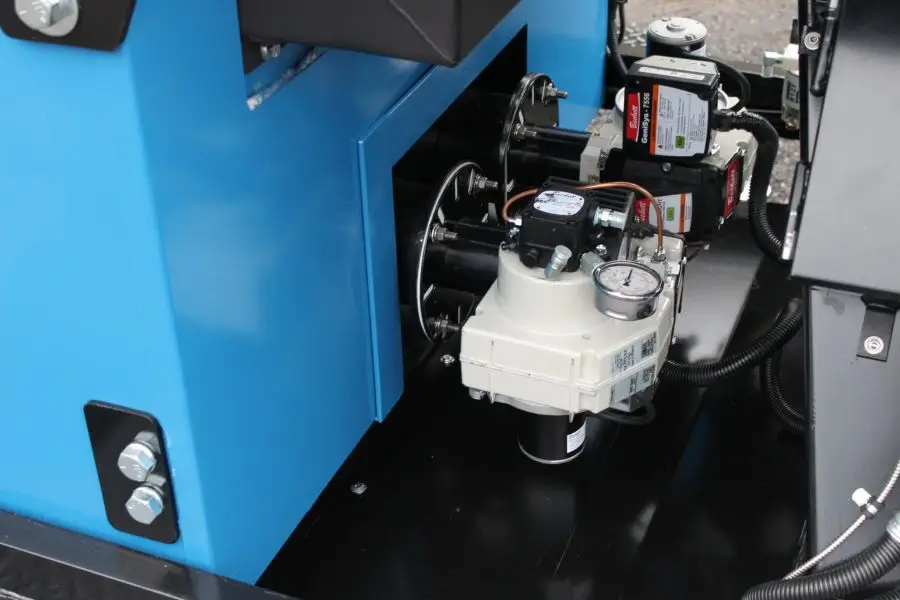

| Burner | Adjustable Liquid Propane 2 X 750,000 BTU or Optional Beckett Diesel Burners |
| Temperature Controls | Optional |
| Inner Shell | 1/4″ Rolled Steel |
| Outer Shell | 3/16″ Rolled Steel |
| Insulated jacket | 1″ Super High Temp. plus 2″ High Temp. |
| Suspension 4″ Drop Axle | 7000 lb Axle and Springs (Optional Tandem axle available) |
| Brakes | Electric Standard |
| Tow Hitch | As ordered c/w safety chain (2) |
| Shipping Weight | 3,600 lbs |
| Pump | Optional 2″ Viking |
| Horizontal Wand Pumping System | Optional |
| Tires | 2 X 8.00 X 16″ 10 Ply Rating |
| Chassis | 6″ Steel Channel |
| Tandem Axle | Optional Tandem 2 x 5000 lb Axles |
Heated Material Output:
- Efficiency: 85.0%
- Heat up time: 75 mins
- Material Capacity: 360 US Gallons | Outout Aprox 300 gal/hr
