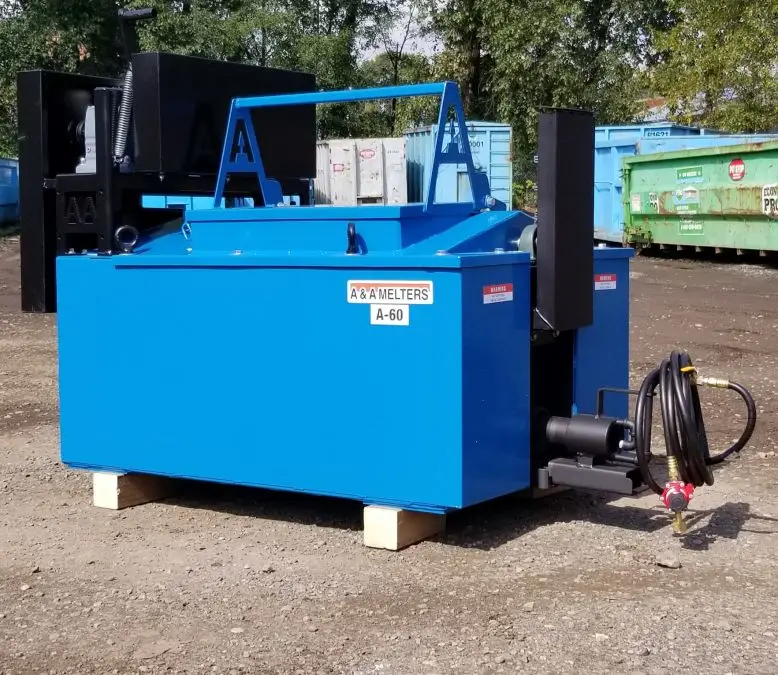

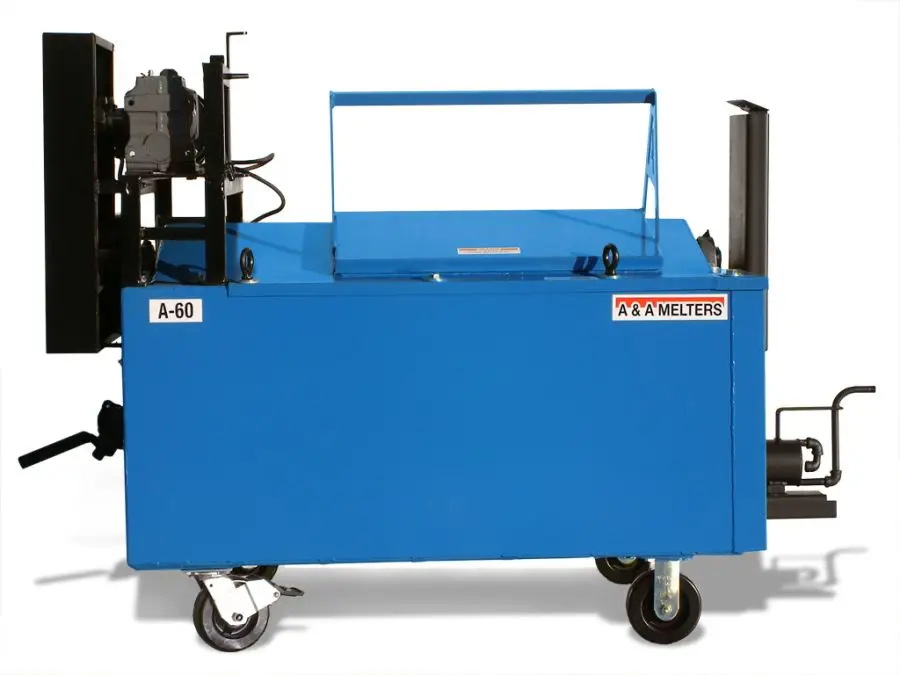

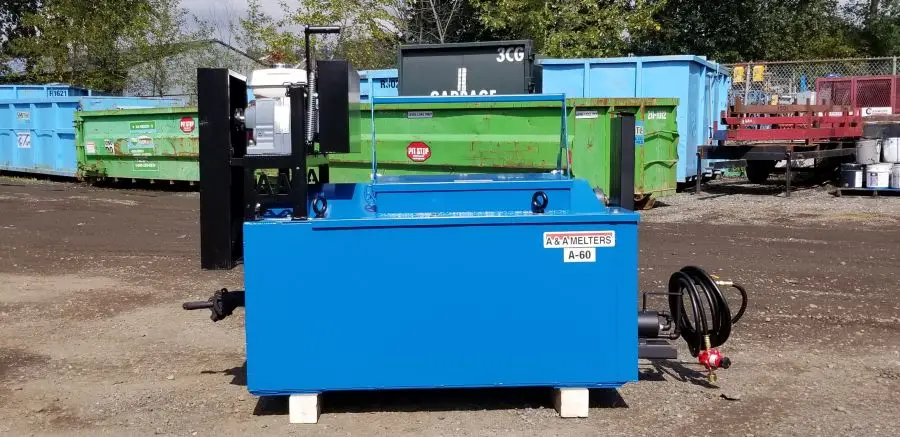

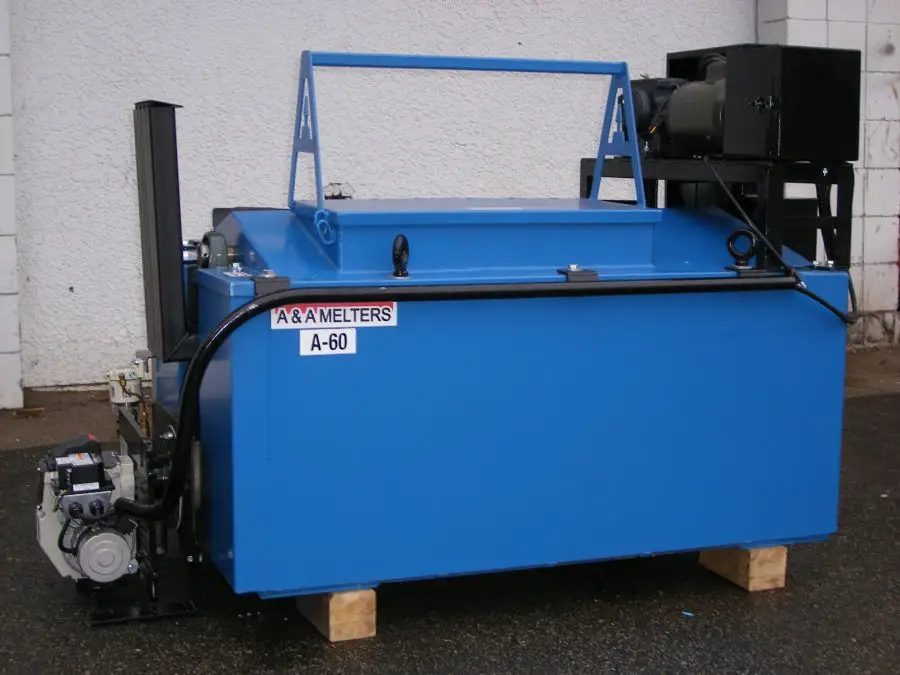

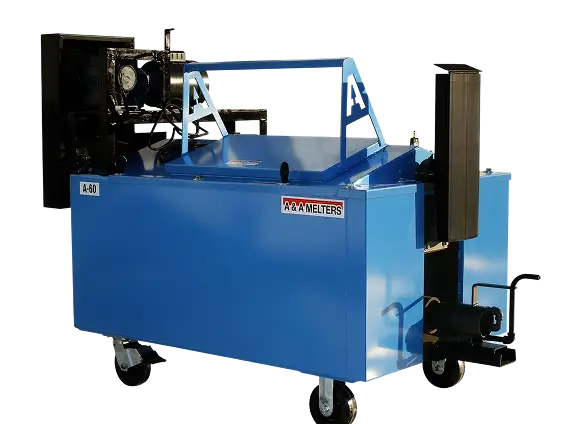

A-60

The A-60 is easily accommodated in commercial elevators, it fits through standard 34″ doorways and can be equipped with optional casters for easy movement. Available with gas or electric drive. Material ready in less than 30 minutes. Stainless steel fire tube comes standard.

The A-60 Melter is one step above our 40 gallon melter. It’s perfect for those in between jobs with the efficiency to match our larger melters.

*Download Spec Sheet here – A&A Melters A-60

*CLICK IMAGE TO ENLARGE

SPECIFICATIONS: A-60

Heat Transfer Oil None Required
Fire Tube 4″ sch 80 Stainless Steel Pipe
Capacity  60 US Gallons
Agitator Honda 4 H.P. Air-Cooled Engine, 110V Electric or Optional Diesel Engine
Overall Dimensions (Melter Only) L-59″ W-33 5/8″ H-45″  1,250 lbs
Burner Adjustable Liquid Propane 1 X 500,000 BTU or Optional Beckett Diesel Burners
Temperature Controls Optional
Inner Shell 3/16″ Rolled Steel
Outer Shell 1/8″ Rolled Steel
Insulated jacket 1/2″ Super High Temp. Plus 2″ High Temp. Fiberglass
Suspension 4″ Drop Axle 3500 lb. Axle and Springs
Optional Trailer (w/ Melter mounted) L-11′ x W-58″ x H-66″ 1,525 lbs.
Brakes Optional
Tow Hitch As ordered c/w safety chain
Shipping Weight (Melter only) 1250 lbs
Pump Optional 1 1/2″ Viking
Horizontal Wand Pumping System Optional
Tires 2 X 6.00 X 14″
Trailer Chassis 4″ Steel Channel

Heated Material Output:

  • Efficiency: 78.9%
  • Material Capacity: 60 US Gallons | 60 gal/.50 hr x 78.9% = 94.7 gal/hr
  • Heat up time: 30 min’s (0.50 hr) | 358.4 L/.50 hr x 78.9% = 565.5 L/hr
